Heating Jacket

ITEM Name

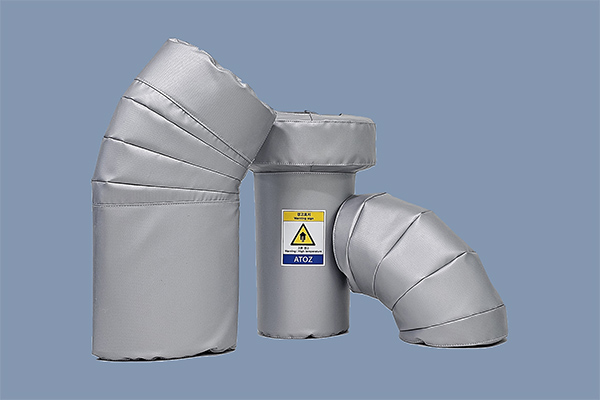

Silicon Coating Mantle Heater - ATNH Series
Product Description

This is a product made of silicone coated cloth fabric and is the
most widely used product group in industrial sites. It is installed
in a wide range of sites such as semiconductor vacuum line,
gas line, and tank lorry to smooth the flow of each process.

Product Specifications
ATNH Series
Spec Operating Temp Standard Temp. 180 ℃
Max. Temp. 200℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth Silicon Coating E-glass Cloth
Inner Cloth Silicon Coating E-glass Cloth
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
ITEM Name

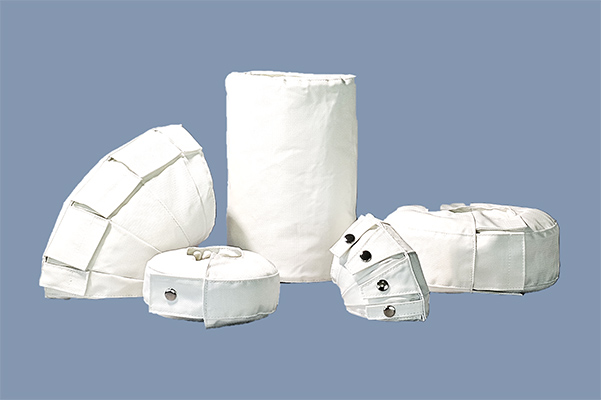

PTFE Coating Mantle Heater - ATPH Series
Product Description

This product is made of PTFE coated cloth fabric and is mainly used
in sites where high temperature or particle management is required.
It is installed inside major facilities such as clean room and equipment
at major semiconductor sites to smooth the flow of each process.

Product Specifications
Item No. ATPH Series
Spec Operating Temp Standard Temp. 260 ℃
Max. Temp. 300℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth Teflon Coating Eglass Cloth
Inner Cloth Teflon Coating Eglass(or Silica) Cloth
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
ITEM Name

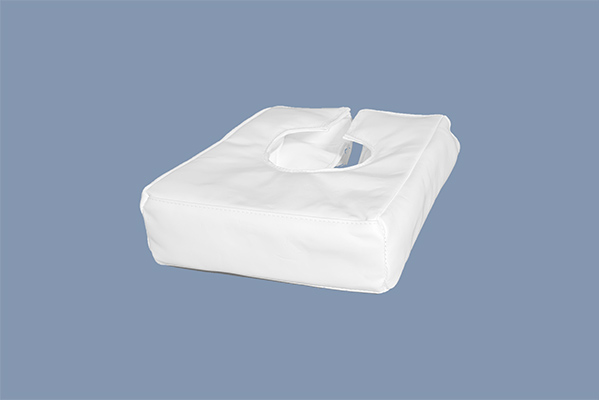

PTFE SHEET Mantle Heater
- ATPSH Series
Product Description

This product is made of 100% PTFE sheet fabric and demonstrates
excellent performance in durability and particle management.
This product is optimized for environmental stability
in a semiconductor clean room and is used to ensure a smooth flow
of each process by installing it inside major facilities such as clean
room and equipment at semiconductor and major industrial sites.

Product Specifications
Item No. ATPSH Series
Spec Operating Temp Standard Temp. 260 ℃
Max. Temp. 300℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth 100% PTFE Sheet
Inner Cloth 100% PTFE Sheet
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
