产品介绍

Heating Jacket

ITEM名称

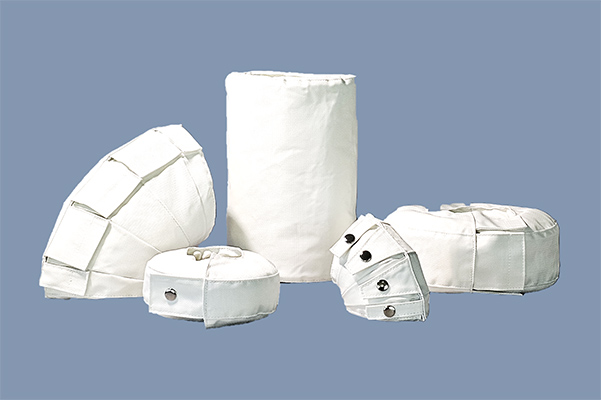

Silicon Coating Mantle Heater - ATNH Series
产品说明

适用Silicone Coated Cloth面料的产品, 是产业现场
使用最多的产品, 安装在半导体的真空线、气体线、罐车等
广泛的现场, 用于保证各工程的流程顺畅。

产品规格
ATNH Series
Spec Operating Temp Standard Temp. 180 ℃
Max. Temp. 200℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth Silicon Coating E-glass Cloth
Inner Cloth Silicon Coating E-glass Cloth
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
ITEM名称

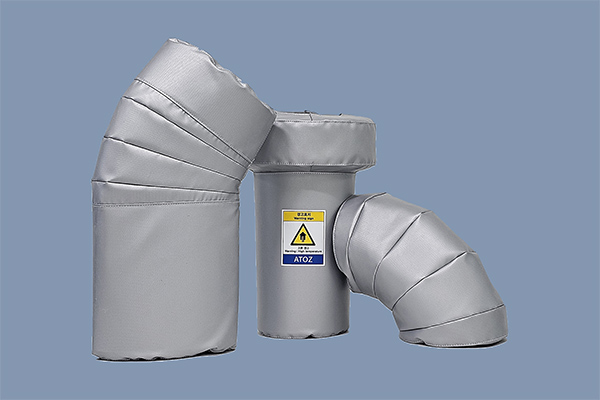

PTFE Coating Mantle Heater - ATPH Series
产品说明

适用PTFE Coated Cloth面料的产品, 主要在高温或需要
Particle管理的现场使用的产品群,
主要安装在半导体现场的洁净室、设备等主要装备的内部,
用于确保各工程的流程顺畅。

产品规格
Item No. ATPH Series
Spec Operating Temp Standard Temp. 260 ℃
Max. Temp. 300℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth Teflon Coating Eglass Cloth
Inner Cloth Teflon Coating Eglass(or Silica) Cloth
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
ITEM名称

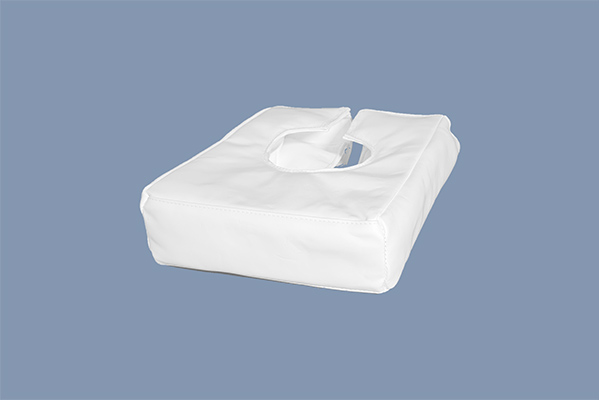

PTFE SHEET Mantle Heater
- ATPSH Series
产品说明

适用100% PTFE Sheet面料的产品, 可在耐久性和Particle管理上
发挥卓越的性能。
在半导体洁净室环境中优化于环境稳定性的产品,
安装在半导体和主要产业现场的洁净室、设备等主要装备的内部,
用于确保各工程的流程顺畅。

产品规格
Item No. ATPSH Series
Spec Operating Temp Standard Temp. 260 ℃
Max. Temp. 300℃
Voltage 100V ~ 220V * 50/60Hz
Materials Outer Cloth 100% PTFE Sheet
Inner Cloth 100% PTFE Sheet
Insulator Silica needle mat
Element Ni-Cr
Sensor K-Type, PT100Ω
Fastener Velcro , Snap Button
Applications Process Etch, Diffusion, CVD, Metal, Clean
Section of use Fore Line, Exhaust Line, Inside the facility(Pump, Scrubber, etc.)
